Product Details
Key Features
- Superb flight characteristics, plus an accurate scale outline!
- Compatible with glow, gasoline and electric power options.
- Bolt-on two-piece wing.
- Factory-covered in high-quality film.
- Functional scale cockpit doors with spring-loaded hatches.

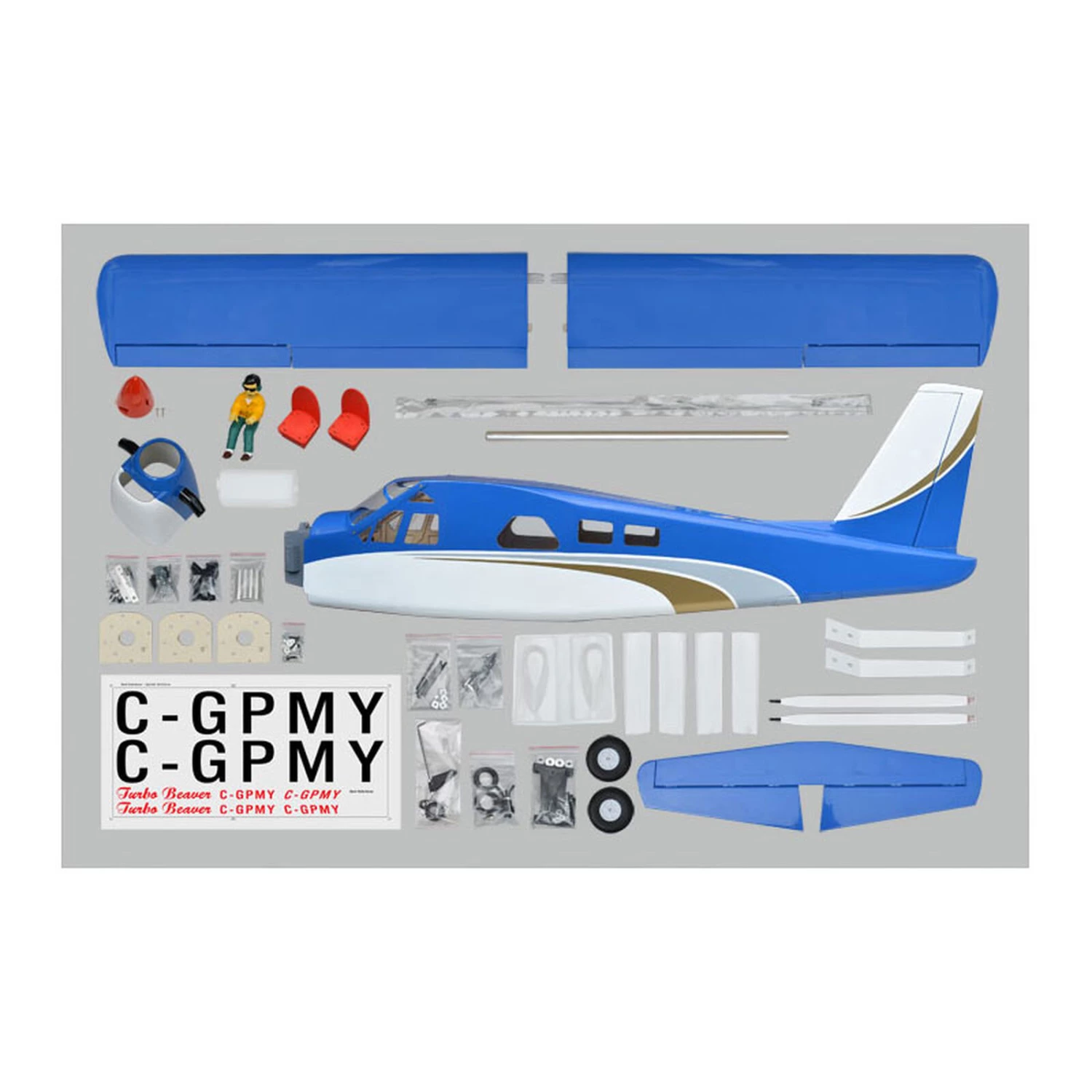

In The Box
- ARF Phoenix Model Turbo Beaver with Landing Gear
- Wheels
- Fuel Tank
- Instrument Panel
- Pilot
- Spinner
- Product manual
Needed to Complete
- For Glow Operation; Engine: .91 2/stroke
- For Gasoline Operation; Engine: 15cc
- For Electric Operation; Brushless Motor: Rimfire 80 ESC: 60-100A LiPo Battery: 6S up to 4000 – 5500mAh
- Radio: 6-channel minimum
- Servos: Seven standard (2-aileron; 2-flaps: 2-elevator; 1-rudder), 1-throttle if using gasoline or glow engine
- Servo Extension: Two 12″ (305mm) for aileron servos
- Y-Harness: One for aileron servos
- Receiver Battery: 4.8-6V 800-1200mAh NiMH
- Misc. Items: 1/4″ foam rubber padding, medium fuel tubing, propeller, building and field equipment.
Features
Product Specifications
| Battery | Sold Separately |
| Engine Size | Glow .91 cu in (15cc) or Gasoline .91 cu in (15cc) sold separately |
| Motor Size | Rimfire 80 recommended |
| Receiver | Sold Separately |
| Wing Area | 671 sq in (43.3 sq dm) |
| Charger | Sold Separately |
| Spinner Size | 2.7″ (69 mm) |
| Wing Loading | 34.41 oz-sq/in (105 g-sq/dm |
| Landing Gear | Scale main gear, spring wire for tail gear w/2.5″ diameter wheels |
| Speed Control | Sold Separately |
| Material | Wood |
| Scale | 1/7 |
| Power Type | Electric/Gas |
| Servos | Sold Separately |
| Skill Level | Level 2 |
| Trim Scheme Colors | White, Gray, Deep Blue and Gold |
| Wingspan | 74.8″ (1900 mm) |
| Minimum Required Radio | 6-channel |
| Radio | Sold Separately |
| CG (Center of Gravity) | 2.6″ (65mm) back from the leading edge of the wing measured at the fuselage |
| Completion Level | Almost Ready-To-Fly |
| Minimum Speed Control | 60-100A |
| Prop Range | 13×8 – 15×8 depending on power system |
| Recommended Motor Battery | 6S LiPo, 4000 – 5500mAh |
