Product Details
Key Features
- Construction: Balsa and ply
- Wing: One-piece, with ailerons and flaps, 21.5″ (546mm) long, 1.26″ (32.1mm) diameter aluminum joiner tube
- Cowl: Painted fiberglass
- Covering: High quality heat shrink covering
- Landing Gear: Retracts with CNC machined metal struts, spring tail gear
- Wheels: 3.25″ (82.5mm) main, 1.25″ (32mm) tailwheel
- Spinner: Red plastic 3.7″ (95mm) diameter
- Top Hatch: Removes for easy access to battery and radio equipment
- Engine Mount: Two-piece composite
- Motor Mount: Plywood
- Fuel Tank: Approximately 14oz (420cc)

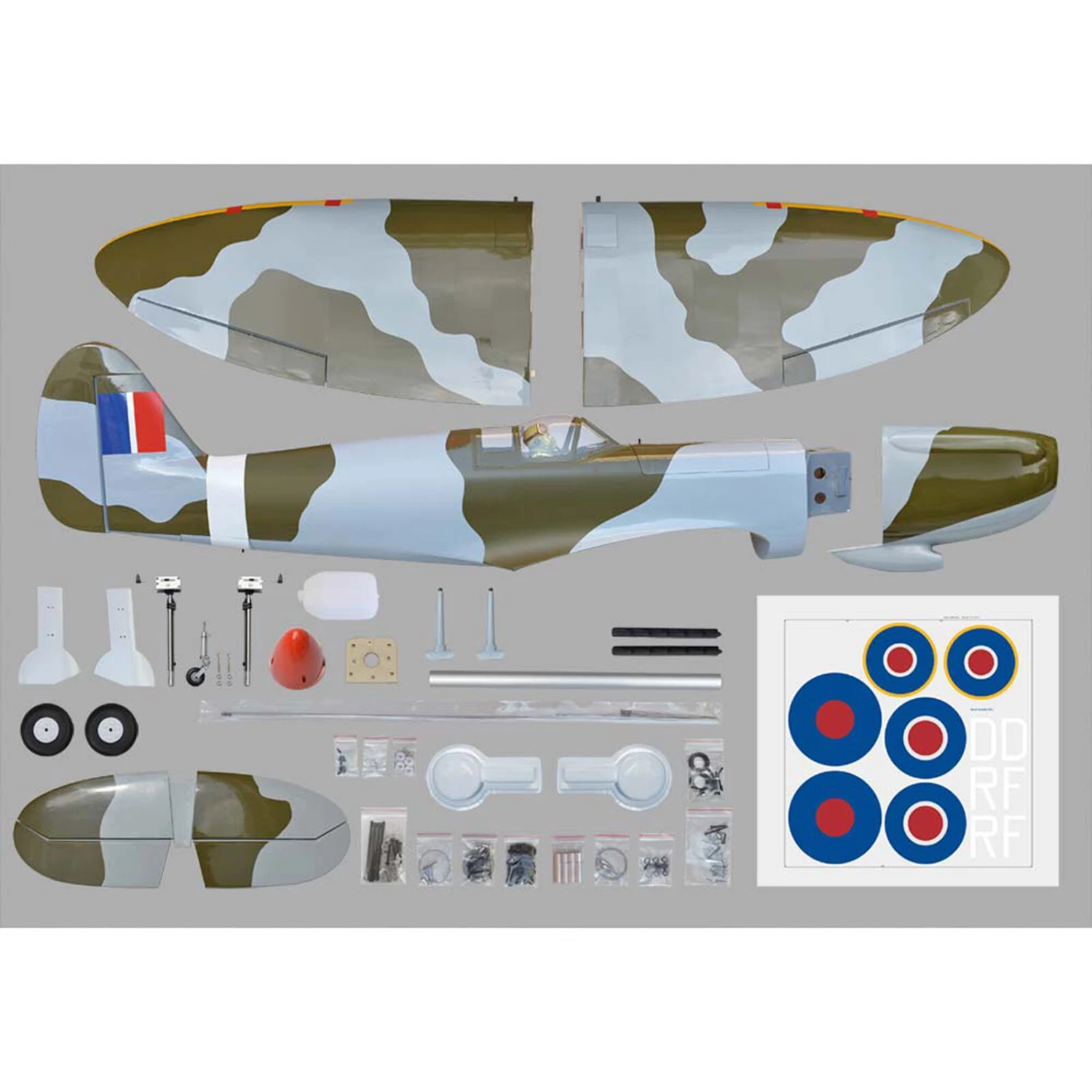

In The Box
- Spitfire 30cc Gas EP ARF
- Prebuilt Wing
- Fuselage and Tail Assemblies
- Retracts
- Main Wheels
- Tailwheel
- Spinner
- Engine Mount
- Motor Mount
- Fuel Tank
- Decal Sheet
- Product Manual
Needed to Complete
- Gasoline Power; Engine: 30cc 2-cycle oil, ignition battery
- Electric Power; Brushless Motor: Great Planes Rimfire 1.20 recommended ESC: 80A if using the Rimfire 1.20 motor listed above LiPo Battery: 5-6 cells, 5500 – 6000mAh Charger, charging bag
- Propeller: Compatible with selected engine or motor
- Radio: 6-channel minimum
- Servos: 7 standard size, high-torque, 2-aileron; 2-flap; 1-elevator 1-rudder; 1 throttle (if using gas engine)
- Retract Gear Servos: Two, Futaba S3170G recommended
- Receiver Battery: 4.8-6V / 2000mAh NiMH
- Field and maintenance equipment
